About This

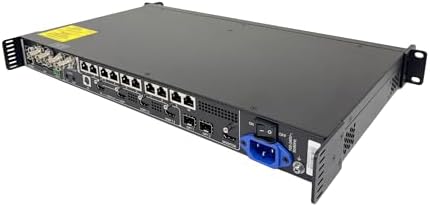

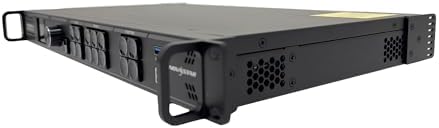

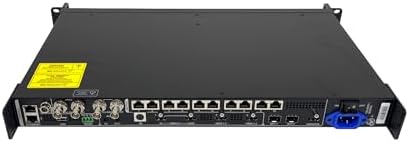

• [ , ' -- ]: The VX1000 Pro is the upgraded, higher-performance evolution of the original VX1000, combining video processing and LED display control in a single 1U controller — purpose-built for fine-pitch LED screens, stage control systems, and high-end rental where the standard VX1000 falls short on 4K input and latency.
• [ ]: 6,500,000-pixel max loading capacity (10,240 px width × 8,192 px height); 1× HDMI 2.0 in/loop (4096×2160@60Hz, 8/10/12-bit); 2× HDMI 1.3 (1920×1080@60Hz); 1× 3G-SDI in/loop; 1× USB 3.0 media playback; 10× Gigabit Ethernet output ports; 2× 10G optical fiber ports (OPT1 self-adaptive, OPT2 backup/loop); 43W rated power (100–240V, 50/60Hz); 0–50°C operating range.
• [ & ]: Direct upgrade path from the VX1000. Works seamlessly with NovaStar Receiving cards A4S, A5S, A5S Plus, A7S Plus, A8S, A8S-N, A10S Plus, A10S Plus-N, MRV208-N, MRV412-N, MRV416, MRV470-2, MRV532, DH7508-S, DH7512-S, DH7516S; and fiber converters CVT10-S, CVT4K-S, CVT320 for long-distance signal transmission.
• [ & ]: Industrial-grade casing rated for 24/7 continuous operation under 0–50°C ambient conditions; certified CE, FCC, IC, RCM, EAC, UL, CB, KC, RoHS; end-to-end backup across devices, input sources, Ethernet ports, and optical ports; automatic settings restoration after power failure; up to 256 user-defined presets.
• [ , & - ]: Supports up to 6 simultaneous layers (e.g., 1×4K×1K + 2×2K×1K, or 6×2K×1K) with adjustable size, priority, and aspect ratio; free-topology screen configuration without rectangle restrictions for creative LED walls and curved/irregular video wall designs; 0-frame latency in ByPass mode — ideal for concert touring, broadcast, digital signage, and control room environments demanding an LED display controller with zero visible delay.

Overview

• Color : VX1000 Pro
• Brand : AzarPixel
• Voltage : 110 volts
• Product Dimensions : 11.89"L x 1.97"W x 19.02"H
• Material : Metal
